STRAIGHT JOINTS FOR SCFF/LPOF CABLES 69 KV - 345 KV
hvGrid-tech’s Straight Joints for SCFF/LPOF cables are based upon a proven design with over 50 years of service around the world in operating voltages from 69 kV up to 345 kV.
They are designed to suit a wide range of standard and custom hydraulic applications, and can withstand nominal operating pressures of 100 psig (690 kPa) and maximum transient pressures of up to 150 psig (1035 kPa).

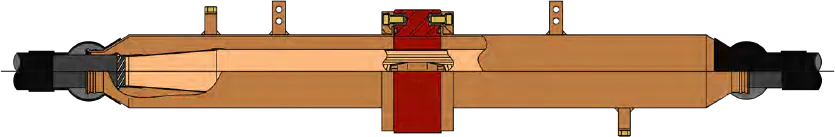

Standard design Straight Joints can be supplied for sectionalized and non-sectionalized applications, and can accommodate lead or aluminum sheath SCFF/LPOF cables, Cu or Al stranded or segmental conductors up to 4500kcmil/2250mm². All hvGrid-tech Straight Joints utilize a two piece copper casing with cable sheath bonding and hydraulic treating/filling features, and a cast epoxy insulator is utilized for sectionalized (shield break) applications.
